[偶现]使用 Surge 作为代理，docker push 推送镜像偶尔会失败。

l-qing

我最近遇到 docker push 推送镜像时，某些层卡住，导致推送失败的问题。
只在通过 5g 无线信号连接路由器时会遇到，通过 2.4g 信号或者网线连接路由器的方式不会遇到该故障。

环境信息：
MacOS： 12.2.1 (21D62)
Surge：Version 4.4.1 (1532)
路由器：ASUS AC-86u
docker：4.4.2 (73305)
docker 镜像仓库：私有的，需要通过一个 http 代理的方式访问。（Surge 中配置了该代理）

网络流量走向是：

com.docker.vpnkit 进程与 Surge 建立一个【本地连接】，127.0.0.1:xxx -> 127.0.0.1:6152(Surge 的代理端口)
Surge 建立一个【外部连接】192.168.1.xxx:xxx -> 外部代理服务器

使用了 netstat -ant 和 tcpdump 观察发现:
出现推送失败时，netstat 显示，【外部连接】出问题的连接在 Send-Q 还很大时（20w+），tcp 的连接状态就变成了 FIN_WAIT_1，该状态表示主动关闭了连接。
然后【本地连接】就立即关闭，docker就感知到了推送失败。
而【外部连接】可能还需要30s+才能把 Send-Q 减小到0才正式关闭该 TCP 连接。

通过打开 Surge 的调试日志发现，【外部连接】先是出现了一个错误：“Write operation timed out“，然后就主动关闭了【内部连接】（6152 端口主动发送了 RST ACK 的包）。具体错误如下：

# TCP 建立连接时
2022-02-12 17:10:47.564357 <INFO> [SGTunnelConnection-2645] Start CONNECT tunnel to host: <xxx domain>:443, SGSocket-6880
2022-02-12 17:10:47.564588 <VERBOSE> [SGTunnelConnection-2645] <initWithSocket:CONNECTHeader:dispatchQueue: (SGTunnelConnection.m:77)> Record ID: 4107
...
2022-02-12 17:10:47.565234 <VERBOSE> [SGConnectorPool] <requestConnectorWithPolicy:targetHostname:targetPort:earlyData:ipVersionDescriptor:dispatchQueue:logger:completionHandler:failureHandler: (SGConnectorPool.m:119)> Create connector request pool: <xxx domain> SGConnectionSetupContext-3972
2022-02-12 17:10:47.565313 <VERBOSE> [SGConnectionSetupContext-3972] <start (SGConnectorPool.m:271)> New connector: SGHTTPProxyConnector-705
2022-02-12 17:10:47.565368 <VERBOSE> [SGHTTPProxyConnector-705] <createSocketWithCompletionHandler: (SGConnector.m:401)> Socket created: SGSocket-6881
2022-02-12 17:10:47.565392 <INFO> [SGHTTPProxyConnector-705] Start connection to proxy server: SGHTTPProxyConnector-705 -> <http-proxy-ip>:52975
...
2022-02-12 17:10:47.660637 <VERBOSE> [SGConnectionSetupContext-3972] <connectorDidBecomeAvailable: (SGConnectorPool.m:401)> connectorDidBecomeAvailable: SGHTTPProxyConnector-705
2022-02-12 17:10:47.660671 <VERBOSE> [SGTunnelConnection-2645] <connectorDidBecomeAvailable: (SGTunnelConnection.m:244)> connectorDidBecomeAvailable


# TCP 断开连接时
2022-02-12 17:11:18.380143 <VERBOSE> [SGHTTPProxyConnector-705] <socketDidDisconnect:withError: (SGConnector.m:233)> Connection disconnect: Error Domain=SGSocketErrorDomain Code=4 "Write operation timed out" UserInfo={NSLocalizedDescription=Write operation timed out}
2022-02-12 17:11:18.380190 <VERBOSE> [SGHTTPProxyConnector-705] <disconnectWithError: (SGConnector.m:350)> disconnectWithError: Error Domain=SGSocketErrorDomain Code=4 "Write operation timed out" UserInfo={NSLocalizedDescription=Write operation timed out}
2022-02-12 17:11:18.380225 <VERBOSE> [SGHTTPProxyConnector-705] <disconnectWithError: (SGConnector.m:364)> disconnectAfterWritingHoldRef
2022-02-12 17:11:18.380272 <VERBOSE> [SGTunnelConnection-2645] <connectorDidDisconnect:withError: (SGTunnelConnection.m:307)> Connector closed: Error Domain=SGSocketErrorDomain Code=4 "Write operation timed out" UserInfo={NSLocalizedDescription=Write operation timed out}
2022-02-12 17:11:18.380318 <VERBOSE> [SGTunnelConnection-2645] <disconnectWithReason: (SGTunnelConnection.m:173)> disconnectWithReason: Closed by remote (Write operation timed out)
2022-02-12 17:11:18.380383 <VERBOSE> [SGLogRequestRecord-4107] <markRecordInactive (SGLogRecord.m:256)> markRecordInactive
2022-02-12 17:11:18.380487 <VERBOSE> [SGConnectionManager] <releaseTunnelConnection: (SGConnectionManager.m:286)> Release tunnel connection: SGTunnelConnection-2645 <xxx domain>:443 (Last activity seconds: 30)
2022-02-12 17:11:18.380522 <VERBOSE> [SGTunnelConnection-2645] <dealloc (SGBaseObjectWithDispatchQueue.m:180)> Dealloc
2022-02-12 17:11:18.380559 <VERBOSE> [SGHTTPProxyConnector-705] <dealloc (SGBaseObjectWithDispatchQueue.m:180)> Dealloc
...
2022-02-12 17:11:18.380850 <VERBOSE> [SGSocket-6880] <dealloc (SGBaseObjectWithDispatchQueue.m:180)> Dealloc

我也试过换成 ClashX Pro，依旧使用相同的代理。
在 2.4g 网络环境下，推送镜像很快（2MB/s）,而切换到 5g 网络环境下，推送镜像很慢（20-200KB/s），最终也能推送成功。

不清楚 Surge 这里的错误日志：’Connection disconnect: Error Domain=SGSocketErrorDomain Code=4 "Write operation timed out"‘ 是不是一个导火索，导致了立即断开【内部连接】。
后面还有一个错误日志： (Last activity seconds: 30)

这些个错误提示在 google 上也没搜索到有用的日志。
该错误也不是一开始就有，而是传输了一段时间后才出现的。
不清楚 Surge 在这块是怎么处理的。

（我一直使用 Surge，平常也没有遇到这种稀奇古怪的问题。）

l-qing

除了在日志中打印 'Record ID:'，能否再打印下具体的端口号？
比如 Socket created: SGSocket-6881 src: 192.168.x.x:xxx dst: xxxxxx
这样就可以跟 tcpdump 中的端口数据对应上了。

目前还需要根据时间戳，连接的地址做推测，不太直观。

l-qing

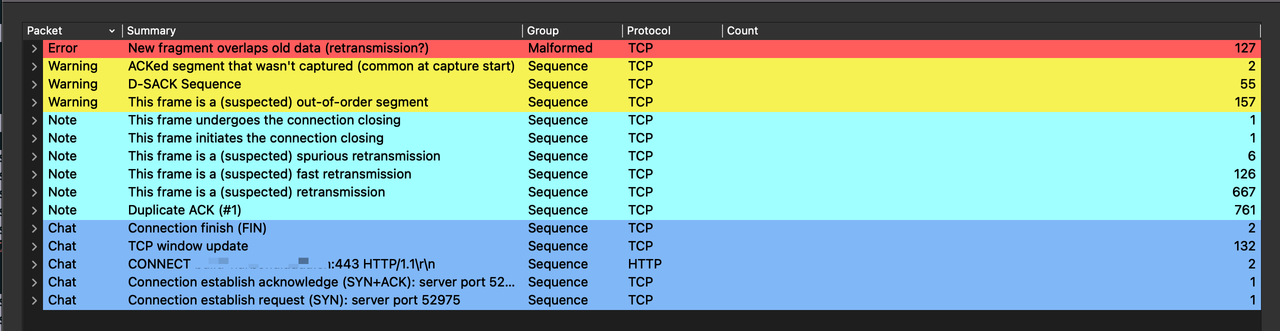

我通过 tcpdump，截取的某个【外部连接】，反正是没看出什么问题。
【外部连接】

【内部连接】

找到一个文章，不知道有没有什么关系：
网络设备只丢弃了部分上行的包，而下行的包不受影响？

https://giters.com/websocket-client/websocket-client/issues/725

Closing the issue. websocket-client is not the root cause of these SSL trackbacks. The intermediary switches, in which this device is connected to, are the root cause of the issue. These switches would drop a few packets, and in some cases drop all packets. The websocket connection would continue listening and waiting for packets, until after some time, then it would timeout and hence the tracebacks. This was happening on the SSL module level, and the websocket-client does not handle this particular traceback.
In particular, the switch would drop only upstream packets (i.e. upload test, packets going from device to the server), and would not interfere with downstream (download test, packets from server to device). Anyways, closing this issue. If someone runs into similar tracebacks, make sure you have a stable websocket connection with whatever server you're trying to talk to.

SurgeTeam

Write operation timed out 错误表示发出的 TCP 数据包没有收到 ACK，可从这个方向进行排查。

l-qing

收到，我再研究下。
